Porcelain Sheath Terminal/ Composite Sheath Terminal (Outdoor Terminal)

: 产品描述
Depending on the operating environment on site, we can supply outdoor terminals with different creepage distances for voltage levels up to 252kV or lower. Cable outdoor terminals are designed with sufficient leakage distance to operate in the most heavily polluted environment as required by IEC60815.

产品型号/使用范围
Liquid-filled insulated porcelain sheath terminal DH-YJZWY4 for XLPE insulated power cable
Liquid-filled insulated composite sheath terminal DH-YJZWFY4 for XLPE insulated power cable

产品特点
Electric field stress control uses stress cones, and is made of imported silicone rubber, presenting excellent electrical insulation performance.
The space between stress cone and cable and the inner wall of the sheath are filled with polyisobutylene (liquid-filled insulation) or silicone gel (dry insulation).
The terminal is of a multilayer sealing structure, which will effectively prevent water seepage or oil leakage during operation.
Optional sheath; The porcelain sheath is made of high-strength electrical porcelain, and the metal flange is fabricated of corrosion-resistant aluminum alloy. The composite sheath is composed of an inner glass-fiber tube and an outer silicone rubber umbrella skirt, and the metal flange is fabricated of corrosion-resistant aluminum alloy.
Post insulators are available for independent grounding.
Various cable fixing and sealing methods are used based on different cable sheaths and armoring structures.

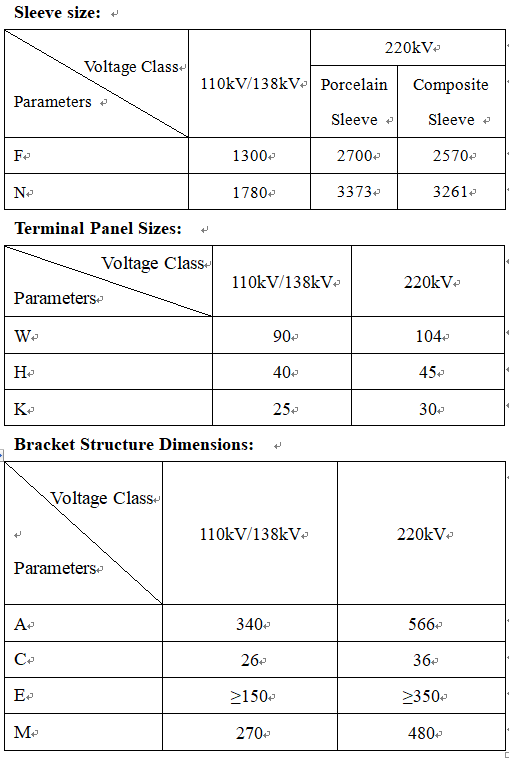

技术参数
