35kVPlug-In-type Separable Connector
35kVPlug-In-type Separable Connector
产品描述
The plug-in-type separable connector, also known as GIS terminal, features a plug-in structure and is suitable for power systems up to 70.5kV, for example, power supply GIS between wind turbines, or wind turbine and substation/ connection stations, transformers, HV motors, generators, ring main units and box-type transformers. This product is manufactured with the cutting-edge injection insulation process, with its electrical performance leading the world, making it safer and more reliable to use. It can be installed even in harsh environments, and is contamination-proof, maintenance-free, of high partial discharge level, and in compact size, fully meeting the requirements for small installation space, making it a world-leading prefabricated cable terminal.
产品型号/使用范围

产品型号:DH-SYCX 26/35

接口尺寸:EN 50181界面标准 - 3#套管

使用范围:适用于额定电压26/35kV,电缆绝缘交联聚乙烯(XLPE)或乙丙橡胶(EPR)绝缘,电缆导体标称截面50~630mm2


产品特点

●终端为干式结构,结构设计紧凑,干式界面、内部无需填充绝缘油或气体。

●终端采用尾管和弹簧一体式紧压结构,应力锥由弹簧机械装置维持其与环氧套管内壁间接触界面的压力,克服了应力锥由于材料老化引起弹性松弛,以确保终端能长期安装运行。

●环氧套管将电缆与设备电缆仓隔离,不论安装、检修等无需在现场打开电缆仓,减少了很多绝缘油和气体的处理工作。

●可以水平、垂直或任意角度将电缆终端连接在设备上,不受电缆和设备影响。

●可选带电指示器用以确定线路运行状态。

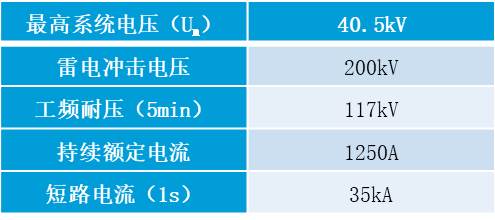

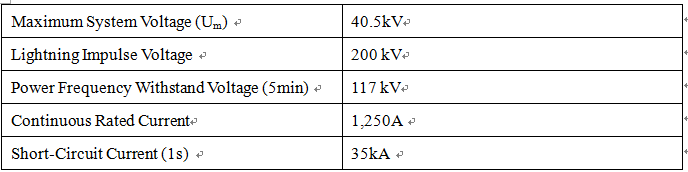

技术参数
